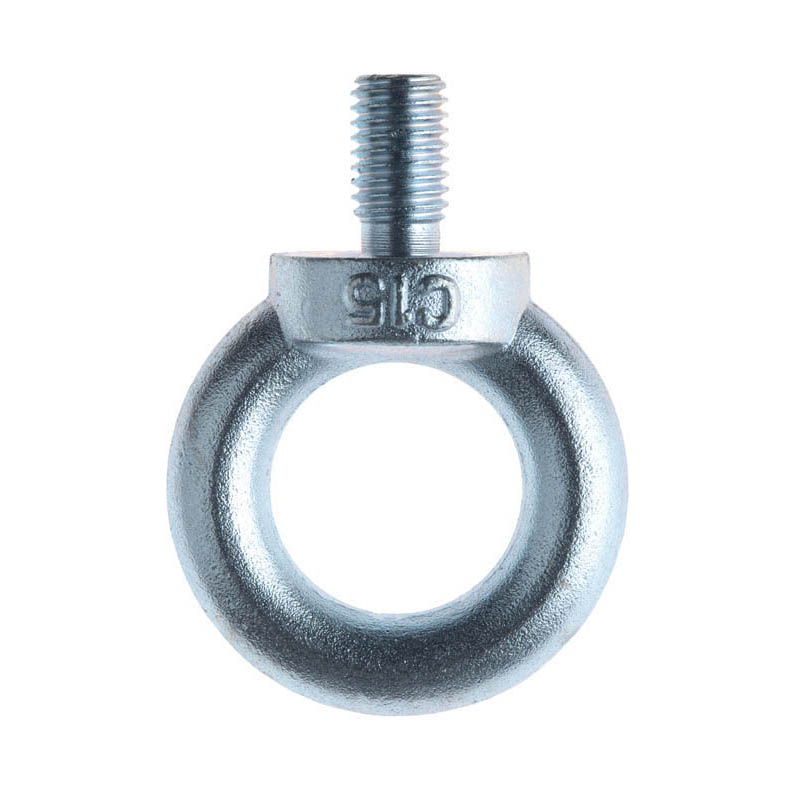

Golfare maschio DIN 580 zincato elettrolitico

Settori di impiego

Materiale

Acciaio

Finitura

Zincata elettrolitica

Tipologia

Golfare
Codice art. Art. code Mis. mm Size mm L (mm) l (mm) hp (mm) wp* (mm) Peso cad. (gr) Weight gr/each SWL tiro dritto (kg) SWL straight pull (kg) SWL a 45° (kg) SWL 45° pull (kg)
GOLM06PZ GOLM06PZ M 6 M 6 36 20 13 8 60 60 75 75 55 55
GOLM08PZ GOLM08PZ M 8 M 8 36 20 13 8 60 60 140 140 100 100
GOLM10PZ GOLM10PZ M 10 M 10 45 25 17 10 110 110 230 230 170 170
GOLM12PZ GOLM12PZ M 12 M 12 54 30 20,5 12 180 180 340 340 240 240
GOLM14PZ GOLM14PZ M 14 M 14 54 30 20,5 12 270 270 490 490 350 350
GOLM16PZ GOLM16PZ M 16 M 16 63 35 27 14 280 280 700 700 500 500
GOLM18PZ GOLM18PZ M 18 M 18 63 35 27 14 440 440 930 930 600 600
GOLM20PZ GOLM20PZ M 20 M 20 72 40 30 16 450 450 1200 1200 860 860
GOLM22PZ GOLM22PZ M 22 M 22 72 40 30 16 720 720 1400 1400 1000 1000
GOLM24PZ GOLM24PZ M 24 M 24 90 50 36 20 740 740 1800 1800 1290 1290
GOLM27PZ GOLM27PZ M 27 M 27 98 54 40 22 1620 1620 2500 2500 1500 1500
GOLM30PZ GOLM30PZ M 30 M 30 108 60 45 24 1660 1660 3200 3200 2300 2300
